Description

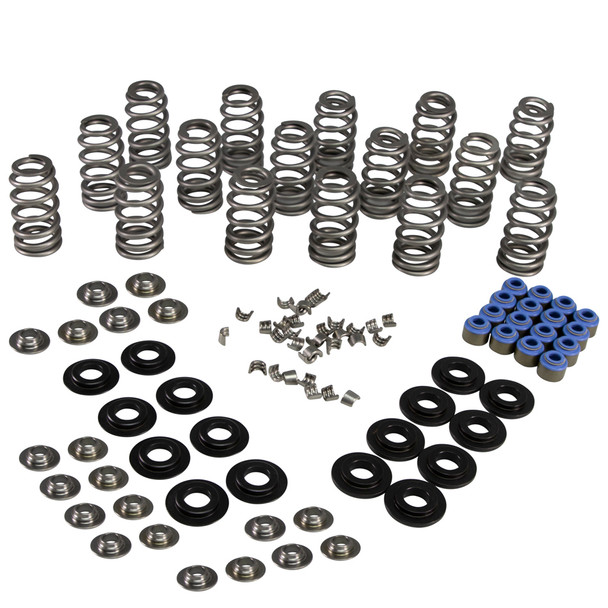

Valve Spring Kit - Beehive Spring - 372 lb/in Rate - 1.140 in Coil Bind - 1.310 in OD - Titanium Retainer - Viton Seal - Mopar Gen III Hemi - Kit
View AllClose
Specifications
Notes: |
Beehive Design, 6.1L |
Coil Bind Height: |
1.14 in |
Damper: |
No |
Inside Diameter of Outer Spring: |
0.65 in / 0.885 in |
Installed Height: |
1.8 in |
Material: |
Steel |
Maximum Valve Lift: |
0.6 in |
Open Load (LBS): |
367 lbs |
Open Load At (in): |
1.15 in |
Outside Diameter of Outer Spring: |
1.075 in / 1.31 in |
Quantity: |
Kit |
Retainers Included: |
Yes |
Retainers Material: |
Titanium |
Retainers Quantity: |
16 |
Seat Load (LBS): |
125 lbs |
Seat Load At (in): |
1.8 in |
Seat Quantity: |
16 |
Seats Included: |
Yes |
Spring Quantity: |
Single Spring |
Spring Rate: |
372 lb/in |
Spring Style: |
Beehive |
Valve Lock Degree: |
7 degree |
Valve Lock Intended Stem Diameter: |
8 mm |
Valve Locks Included: |
Yes |
Valve Locks Material: |
Steel |
Valve Locks Quantity: |
16 |
Valve Seal Material: |
Viton |
Valve Seal Quantity: |
16 |
Valve Seals Included: |
Yes |
Valve Spring Material: |
Steel |
Valve Spring Quantity: |
16 |
